Services at KPM

Industry Excellence

Section - Featured Services

KPM | Resolve, Repair, Renewal

Featured Services

Precision Machining and Manufacturing

  • • Large capacity machining
  • • Fully automated CNC solutions
  • • Robotic surface engineering

Design and Engineering

  • • In-house CAD and CAM

Rotating Equipment Remanufacturing/Maintenance

  • • Industrial
  • • Agricultural
  • • Municipal
  • • Off highway vehicles
  • • Marine repairs
  • • Shovels and drills

Diagnostics

  • • Troubleshooting of VT pumps, submersible pumps and horizontal pumps
KPM
Section - Surface Engineering

KPM | Resolve, Repair, Renewal

Surface Engineering

KPM works directly with end-users, OEMs and manufacturers to develop the most cost effective and surface enhancement solution. We start by assessing your specific wear/corrosion conditions and assist you in opti-mizing component life.

It is during the engineering step where KPM’s extensive experience makes a difference depending on the application, abrasion resistance and corrosion protection - KPM can choose from a wide variety of surface enhancement capabilities, such as:

  • • HVOF - High Velocity Oxygen Fuel - deposited coatings
  • • Thermal spray and metallurgical bonded coating
  • ZirmaX™ - zirconia based toughened ceramic
  • EnduramaX™ - reaction bonded silicone carbides
  • SuperFlex™ - impact resistant flexible ceramic
  • SuperScreen™ - long life screening device for ball rod and sag mills
KPM
Section - HVOF Overlay

KPM | Resolve, Repair, Renewal

HVOF Overlay - High Velocity Oxygen Fuel

High Velocity Oxygen Fuel Blended Coating is a thermal spray coating process used to improve / restore parts to extend equipment life and durability. The process creates a high velocity to propel particles onto a prepared surface. The HVOF Blended Coating process is a low temperature application process. We offer a diverse range of alloys to suit your specific application.

  • BENEFITS:
  • • Reduce costs
  • • High density
  • • High hardness
  • • Low porosity
  • • Excellent wear resistance
  • • Low coating stress
  • • Capable of handling large parts
  • • Thick coatings are possible
  • • Component can be recoated repeatedly
  • • Surface finish capability down to 4 RA
KPM
Section - Bearing and Sealing Surfaces

KPM | Resolve, Repair, Renewal

Bearing and Sealing Surfaces

Components

  • OHV
  • • Wheel hubs (front and rear)
  • • Bearing seat buildups
  • • Axels
  • • Brake components
  • • Brake anchors, park brake pistons and service pistons
  • • Front suspension chrome replacement
  • HVOF
  • • Tooling & Die repairs
  • • Wheel groups (both)
  • • Mining/mineral processing
  • • Down hole drilling
  • • Fracking
  • • Drill & shovel components
  • • Alternative energy
  • • Injection molding
  • • Ground engagement Earth moving

Benefits

  • • Able to salvage excessively worn parts
  • • KPM is able to apply metalize coatings to bearing bores in excessively heavy build ups as well as bearing seats; while maintaining very tight finish dimensional tolerances
  • • Life expectancy: 2-3x service cycles
  • • This repair process is typically 20-40% of new cost.
KPM
Section - Repairs

KPM | Resolve, Repair, Renewal

Repairs & Restoration

KPM can extend the overall life of your Vertical Turbine Pumps by furnishing:

  • • Hardened bowl wear rings and hardened impeller wear rings
  • • Ever tough coating on impellers
  • • Hardened bearing surfaces on shafts
  • • Upgraded interbowl bearings
  • • Zero maintenance stuffing box™
KPM
Marine Repairs

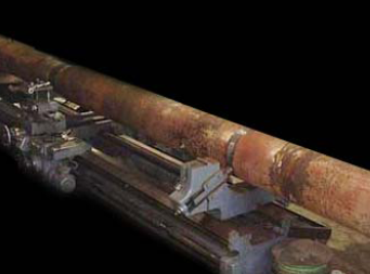

Before & After - Propeller Shaft BC Ferries

Marine Repairs

Details

  • • Lloyd's certified repair procedure
  • • HVOF spraying on engineered components
  • • Twin arc spraying bronze to engineered components
  • • KPM provides international repairs on cruise ships, ocean going freighters, great lakes freighters, passenger ferries and luxury yachts

Dimensions

  • • KPM is capable of handling large shafting up to 35 feet long and weighs up to 30,000 lbs

Typical Repairs

  • • Bow thruster repairs
  • • Gear box shaft repairs
  • • Gear box bearing bore resizing
  • • Seal diameter repairs
  • • Propeller shafts

Benefits

  • KPM has performed repairs on bearing diameters in excess of 1/2" thick per side.
  • • KPM's propeller shaft repairs are expected to last 25 years
  • • Over the years KPM has performed numerous ship propeller shaft repairs
  • • Coatings have a hardness of Rc55 completely through the base material
KPM
Hard Chrome Replacement Before and After

Before & After - Hard Chrome Replacement

Hard Chrome Replacement

Typical Uses

  • • Piston rods
  • • Haul truck suspensions
  • • Dump cylinders
  • • Steering rods
  • • Hydraulic actuators

Benefits

  • • Wear resistant
  • • Corrosion resistant
  • • Environmentally friendly
  • • 700-1000 vickers - HVOF
  • • Excellent surface finish
  • • No limit to size or part
  • • Denser coating
  • • Outlast chrome 4-5 times
  • • Chrome can reduce sub straight fatigue by 30-50%
  • • Extend seal life on hydraulic components
KPM
Section - Heavy Buildups

KPM | Resolve, Repair, Renewal

Heavy Buildups

Lifespan

  • • Can exceed OEM lifespan by several times

Description

  • • Bores in excess of 1/2" per side buildups
  • • HVOF OD in excess of 1/2" per side buildups
  • • 60 hardness on ODs
  • • 7500 psi bond strength
  • • Ideal for outside bearing diameters typical applications
  • • Haul truck spindle bearing diameters ship propeller shaft bearing areas
  • • Coating can be removed and resprayed multiple times
  • • State of the art spray booth
  • • Able to handle large parts
  • • Repeatable robotic spraying, ensures consistent coatings
KPM
Section - Mining Applications

KPM | Resolve, Repair, Renewal

Mining Applications

Typical mining applications:

  • • Heavy haul trucks
  • • Shovels
  • • Drills
  • • Apron feeder shaft bearing diameters
KPM
Section - Heavy Haul Truck Repairs

KPM | Resolve, Repair, Renewal

Heavy Haul Truck Repairs

Typical Uses

  • • KPM has Komatsu America certification for HVOF applications
  • • HD1500/HD785 rear differential bearing diameter repairs
  • • HD1500/HD785 Front spindle bearing diameter repairs
  • • KPM is capable of all line boring repairs
  • • Rear spindle bearing diameter repairs on all truck models
  • • Front spindle bearing diameter repairs on all truck models
  • • Steering components
  • • Front and rear wheel hub repairs, and more...
KPM
